A six-story hotel going up near downtown Anchorage hit a snag when test borings showed a layer of thaw-unstable silt at 8 meters. Without treatment, the foundation would settle unevenly within five years. We designed a grouting program that stabilized that layer by injecting a cement-bentonite mix at controlled pressures. The approach kept the project on schedule and within budget. For sites with similar conditions, combining grouting with a georradar survey helps map void networks before injection begins. That step saves money by targeting only the zones that need treatment.
Grouting in Anchorage is not about a standard mix; it is about matching the injection to the frozen or thawed state of the soil.
Methodology and scope
Local considerations
Anchorage lies in a high-seismic zone — the 1964 earthquake measured 9.2. Loose, saturated soils here are prone to lateral spreading and liquefaction. Without proper grouting design, a quake can turn a stable foundation into a sinking one. We evaluate the cyclic resistance ratio of the treated soil and use NCEER-based methods to confirm the grouting reduces liquefaction potential below threshold values. That analysis is part of every design we deliver for projects in the Turnagain Arm area or along the Glenn Highway corridor.
Applicable standards
ASTM D5092 – Standard Practice for Design and Installation of Groundwater Monitoring Wells (grouting seals), ASCE Grouting Committee – Guidelines for Grouting in Seismic Regions, IBC 2021 – Chapter 18 (foundation treatment for liquefaction mitigation)
Associated technical services
Permeation Grouting
Low-pressure injection of cement or chemical grout into granular soils to fill voids and increase strength without disturbing the soil structure. Ideal for gravel fills and coarse sands.

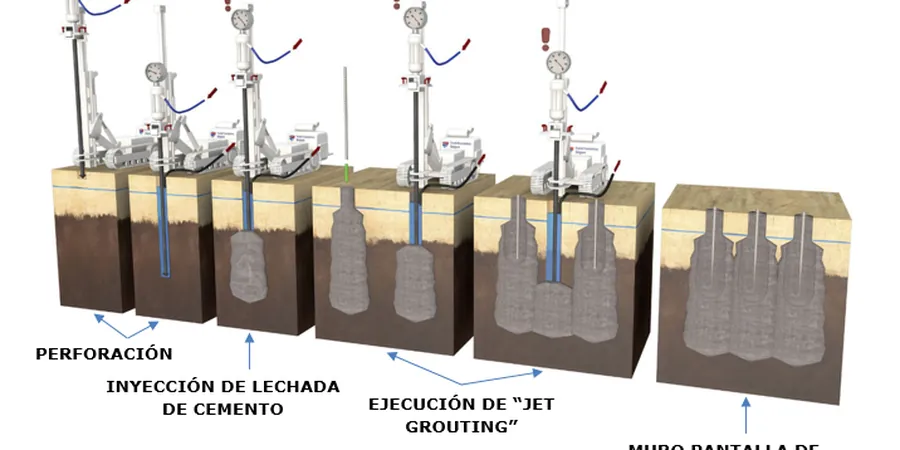

Jet Grouting
High-energy erosion and mixing of soil with grout to create columns of treated ground. Used in silty or clayey layers where permeation is not effective.
Compaction Grouting
Viscous, low-slump grout injected under high pressure to densify loose soils. Effective for settlement control under existing structures in Midtown Anchorage.
Fracture Grouting
Injection under controlled hydraulic fracture to lift or stabilize slabs and foundations. Applied when differential settlement has already started.
Typical parameters
Frequently asked questions
How does permafrost affect grouting design in Anchorage?
Permafrost layers can thaw during injection, causing the grout to take unexpected paths. We design the mix with a low heat of hydration — typically a slag-cement blend — and monitor ground temperature with thermistors during the injection to keep the frozen ground stable.
What is the typical cost range for a grouting design in Anchorage?
A full design package, including lab testing of candidate mixes and injection parameters, generally falls between US$1.330 and US$4.060. The final number depends on the number of injection zones and the complexity of the soil profile.
Do you design grouting for seismic retrofitting of existing foundations?
Yes. We have worked on retrofits for schools and commercial buildings built before the 1990s. The design focuses on improving the soil stiffness and reducing liquefaction potential under the existing footings using low-mobility compaction grouting.
How long does a grouting design study take?
For a typical 4- to 8-story project, the design phase takes 3 to 5 weeks. That includes a site visit, review of existing borings, mix design in the lab, and a written report with injection guidelines for the contractor.
