Geotechnical Analysis for Soft Soil Tunnels in Anchorage

A common mistake we see from contractors working on underground projects in Anchorage is assuming the dense glacial till layer behaves uniformly across the city. The reality is that soft soil pockets, often glaciolacustrine silts and clays, are scattered throughout the Ship Creek Valley and the hillside areas. When a tunnel alignment hits one of these zones without prior characterization, the results can be severe—sudden face collapse, excessive surface settlement, or even a water inflow that halts progress for weeks. A proper geotechnical analysis for soft soil tunnels starts with identifying those weak layers, and we typically begin with a MASW survey to map shear wave velocities across the alignment before any boring takes place.

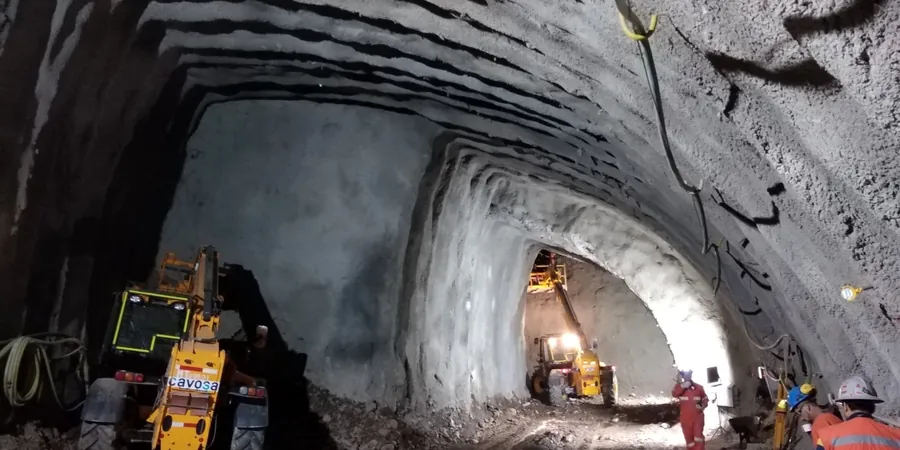

Illustrative image of Tuneles suelo blando in Anchorage

Soft soil pockets in Anchorage's glaciolacustrine silts and clays can cause sudden tunnel face collapse without proper pre-characterization.

Methodology and scope

Anchorage sits on the edge of the Cook Inlet basin, where the water table fluctuates dramatically with seasonal snowmelt and tidal influence—this forces tunnel designs to account for both confined and unconfined conditions. In our work, we focus on three key parameters for soft ground tunneling: undrained shear strength from UU triaxial tests, elastic modulus from pressuremeter testing, and hydraulic conductivity from falling head permeameter tests. We also run consolidation tests on the Bootlegger Cove Formation clays, which are notorious for their high compressibility and sensitivity. These tests feed directly into finite element models that predict ground loss and the effect on adjacent structures. The variability in soil stiffness across Anchorage means you cannot rely on a single design profile—each section of the tunnel needs its own set of parameters.

Local considerations

The biggest challenge in Anchorage is the combination of permafrost degradation and high seismicity—soft soils that lose strength when thawed can amplify ground shaking during an earthquake. For a tunnel bored through these materials, the risk of liquefaction in the overlying sand lenses is real, especially near the Turnagain Arm where loose fluvial deposits are common. On top of that, the freeze-thaw cycles around the portal zones create differential heave and settlement that can crack the lining. Our approach integrates thermal monitoring with the geotechnical analysis for soft soil tunnels, so we can predict where seasonal changes will most affect the ground behavior. We also cross-check results against the NCEER liquefaction criteria to flag zones needing ground improvement.

Need a geotechnical assessment?

Reply within 24h.

Email: contact@geotechnicalengineering1.biz

Applicable standards

ASTM D1586-18 (Standard Penetration Test), ASTM D2850-15 (Unconsolidated-Undrained Triaxial Test), ASCE 7-22 (Seismic Load Provisions for Tunnels), FHWA-NHI-19-025 (Technical Manual for Design and Construction of Road Tunnels)

Associated technical services

Advanced laboratory testing for soft soils

We perform resonant column, cyclic triaxial, and constant rate of strain consolidation tests tailored to the low-stiffness soils typical of Anchorage tunnel alignments. Results are calibrated against in-situ pressuremeter data.

Seismic hazard and liquefaction screening

Using the Youd-Idriss 2001 method combined with site-specific Vs30 profiles, we identify zones where soft soil tunnels face the highest risk of cyclic softening and provide mitigation recommendations.

Typical parameters

Parameter	Typical value
Undrained shear strength (Su)	20–80 kPa (glaciolacustrine silts)
Elastic modulus (E)	5–25 MPa (soft clays)
Hydraulic conductivity (k)	1×10⁻⁷ – 1×10⁻⁵ m/s
Liquidity index (LI)	0.5–1.2 (Bootlegger Cove Formation)
Coefficient of consolidation (cv)	2–8 m²/year

Frequently asked questions

What is the typical cost range for a geotechnical analysis for soft soil tunnels in Anchorage?

For a tunnel project in Anchorage, expect a cost between US$3,700 and US$17,840 depending on the number of borings, laboratory tests, and the complexity of the seismic analysis. Larger alignments with multiple soil units fall at the higher end.

How does the Bootlegger Cove Formation affect tunnel design?

This formation consists of highly sensitive, quick-clay-like silts and clays that lose strength when disturbed. Our laboratory tests measure its sensitivity ratio (typically 4–8) and thixotropic recovery, which directly influence the required support pressure and advance rate in soft ground tunneling.

What seismic parameters are critical for Anchorage tunnel projects?

Peak ground acceleration (PGA) values from ASCE 7-22, site class D or E according to Vs30 measurements, and liquefaction potential index (LPI) are the three main inputs. We also evaluate cyclic stress ratio (CSR) and cyclic resistance ratio (CRR) using NCEER procedures.
