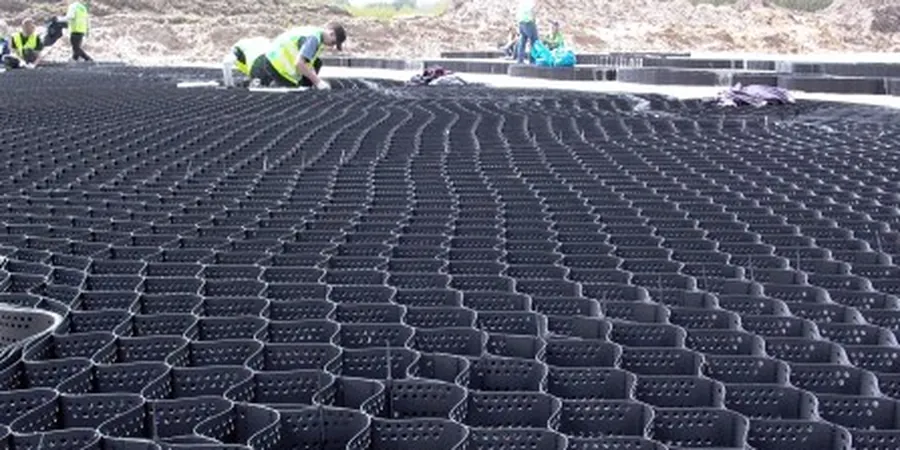

We were called to a site off the Old Seward Highway last winter where a parking lot had settled nearly 10 inches in two years. The owner had paved directly over silty gravel without any confinement layer. That failure is exactly why we integrate geocell design into our Anchorage projects. The system works by confining granular fill within a three-dimensional honeycomb structure, which distributes vertical loads laterally and reduces differential settlement. Before we finalize any design, we always run a density test with a sand cone on site to confirm the subgrade compactive effort, and we pair that with a plate load test to verify bearing capacity before the cells are placed.
Geocell design distributes vertical loads laterally through a honeycomb confinement structure, reducing differential settlement in soft subgrades common to Anchorage.
Methodology and scope
Local considerations
Anchorage sits in a region where the frost depth can reach over 10 feet in a severe winter. When the ground freezes and thaws, any unconfined base layer will heave unevenly and crack the pavement above. That is the main risk we address with geocell design: it locks the aggregate in place so frost jacking is minimized. We have also seen cases where the cell walls act as a capillary break, reducing the amount of moisture that wicks upward into the base. For a city that recorded 150,000 residents in the 2020 census and continues to expand its suburban road network, getting the confinement right from the start saves thousands in future repairs.
Applicable standards
ASTM D4883 – seam strength for geocells, AASHTO Guide for Design of Pavement Structures (TI method), ASTM D698 / D1557 – compaction reference for fill
Associated technical services
Subgrade evaluation and soil classification
We sample the subgrade at the proposed cell depth, run sieve and Atterberg limits in our Anchorage lab, and deliver a full classification report (USCS / AASHTO) before design begins.
Geocell fill and compaction testing
Once the cells are installed and filled, we verify compaction using nuclear density gauge or sand cone method per ASTM D6938, ensuring the target density is met across the entire area.
Post-installation load verification
We perform plate load tests on the completed geocell section to confirm that the design bearing capacity has been achieved, and we document the results for the engineer of record.
Typical parameters
Frequently asked questions
How does geocell design help with frost heave in Anchorage soils?
Geocell design confines the granular fill within a three-dimensional honeycomb structure, which locks the aggregate in place during freeze-thaw cycles. This confinement minimizes differential heave because the cells prevent lateral movement of the fill when ice lenses form. In our Anchorage projects, we have measured up to 40 percent less surface distortion on geocell-reinforced sections compared to unreinforced base layers after one winter season.
What is the typical cost range for a geocell design project in Anchorage?
For a standard parking lot or residential road, the total project cost including material, installation, and our testing services typically falls between US$730 and US$2,640 per section. The exact price depends on the cell height, the volume of fill required, and whether additional testing like plate load or compaction is needed. We always provide a line-item quote after reviewing the site conditions.
Do you test the geocell seam strength before installation?
Yes, we perform seam peel testing per ASTM D4883 on random samples from each production batch. Seam strength must exceed 1,200 N to ensure the cells do not separate under traffic loads. We document the results in our laboratory report and flag any batch that falls below the threshold before it reaches the Anchorage job site.
